javascript - I made an example imitating the map on the echarts official website, but only the location is displayed and the dynamic effect of the aircraft is not drawn? ? urgent

Question

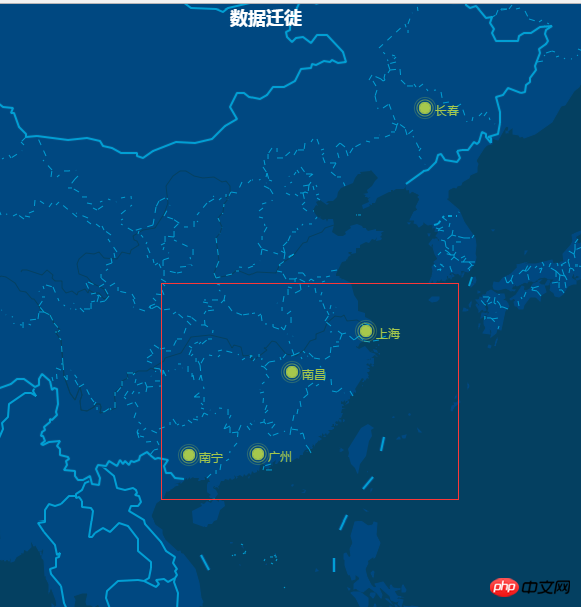

As shown in the picture above: Only the points are displayed, but the plane and arc below are not displayed
The following is my code. . I didn't find the problem myself, please help me.
var myChart = echarts.init(document.getElementById('main'));

/*开始中线点坐标*/
     var startPoint = {
        x: 116.403874,
        y: 39.914889
     };
     // 地图自定义样式
     var bmap={
        // 百度地图中心经纬度
        center: [startPoint.x, startPoint.y],
        // 百度地图缩放级别
        zoom: 5,
        // 是否开启拖拽缩放
        roam: true,
        // 百度地图的自定义底图样式
        mapStyle: {
           styleJson: [
              {
                 "featureType": "water",
                 "elementType": "all",
                 "stylers": {
                    "color": "#044161"
                 }
              },
              {
                 "featureType": "land",
                 "elementType": "all",
                    "stylers": {
                       "color": "#004981"
                    }
              },
              {
                 "featureType": "boundary",
                 "elementType": "geometry",
                 "stylers": {
                    "color": "#064f85"
                 }
              },
              {
                 "featureType": "railway",
                 "elementType": "all",
                 "stylers": {
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "highway",
                 "elementType": "geometry",
                 "stylers": {
                    "color": "#004981"
                 }
              },
              {
                 "featureType": "highway",
                 "elementType": "geometry.fill",
                 "stylers": {
                    "color": "#005b96",
                    "lightness": 1
                 }
              },
              {
                 "featureType": "highway",
                 "elementType": "labels",
                 "stylers": {
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "arterial",
                 "elementType": "geometry",
                 "stylers": {
                    "color": "#004981"
                 }
              },
              {
                 "featureType": "arterial",
                 "elementType": "geometry.fill",
                 "stylers": {
                    "color": "#00508b"
                 }
              },
              {
                 "featureType": "poi",
                 "elementType": "all",
                 "stylers": {
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "green",
                 "elementType": "all",
                 "stylers": {
                    "color": "#056197",
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "subway",
                 "elementType": "all",
                 "stylers": {
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "manmade",
                 "elementType": "all",
                 "stylers": {
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "local",
                 "elementType": "all",
                 "stylers": {
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "arterial",
                 "elementType": "labels",
                 "stylers": {
                    "visibility": "off"
                 }
              },
              {
                 "featureType": "boundary",
                 "elementType": "geometry.fill",
                 "stylers": {
                    "color": "#029fd4"
                 }
              },
              {
                 "featureType": "building",
                 "elementType": "all",
                 "stylers": {
                    "color": "#1a5787"
                 }
              },
              {
                 "featureType": "label",
                 "elementType": "all",
                 "stylers": {
                    "visibility": "off"
                 }
              }
           ]
        }
     }
var geoCoordMap = {
        '上海': [121.4648,31.2891],
        '东莞': [113.8953,22.901],
        '东营': [118.7073,37.5513],
        '中山': [113.4229,22.478],
        '临汾': [111.4783,36.1615],
        '临沂': [118.3118,35.2936],
        '丹东': [124.541,40.4242],
        '丽水': [119.5642,28.1854],
        '乌鲁木齐': [87.9236,43.5883],
        '佛山': [112.8955,23.1097],
        '保定': [115.0488,39.0948],
        '兰州': [103.5901,36.3043],
        '包头': [110.3467,41.4899],
        '北京': [116.4551,40.2539],
        '北海': [109.314,21.6211],
        '南京': [118.8062,31.9208],
        '南宁': [108.479,23.1152],
        '南昌': [116.0046,28.6633],
        '南通': [121.1023,32.1625],
        '厦门': [118.1689,24.6478],
        '台州': [121.1353,28.6688],
        '合肥': [117.29,32.0581],
        '呼和浩特': [111.4124,40.4901],
        '咸阳': [108.4131,34.8706],
        '哈尔滨': [127.9688,45.368],
        '唐山': [118.4766,39.6826],
        '嘉兴': [120.9155,30.6354],
        '大同': [113.7854,39.8035],
        '大连': [122.2229,39.4409],
        '天津': [117.4219,39.4189],
        '太原': [112.3352,37.9413],
        '威海': [121.9482,37.1393],
        '宁波': [121.5967,29.6466],
        '宝鸡': [107.1826,34.3433],
        '宿迁': [118.5535,33.7775],
        '常州': [119.4543,31.5582],
        '广州': [113.5107,23.2196],
        '廊坊': [116.521,39.0509],
        '延安': [109.1052,36.4252],
        '张家口': [115.1477,40.8527],
        '徐州': [117.5208,34.3268],
        '德州': [116.6858,37.2107],
        '惠州': [114.6204,23.1647],
        '成都': [103.9526,30.7617],
        '扬州': [119.4653,32.8162],
        '承德': [117.5757,41.4075],
        '拉萨': [91.1865,30.1465],
        '无锡': [120.3442,31.5527],
        '日照': [119.2786,35.5023],
        '昆明': [102.9199,25.4663],
        '杭州': [119.5313,29.8773],
        '枣庄': [117.323,34.8926],
        '柳州': [109.3799,24.9774],
        '株洲': [113.5327,27.0319],
        '武汉': [114.3896,30.6628],
        '汕头': [117.1692,23.3405],
        '江门': [112.6318,22.1484],
        '沈阳': [123.1238,42.1216],
        '沧州': [116.8286,38.2104],
        '河源': [114.917,23.9722],
        '泉州': [118.3228,25.1147],
        '泰安': [117.0264,36.0516],
        '泰州': [120.0586,32.5525],
        '济南': [117.1582,36.8701],
        '济宁': [116.8286,35.3375],
        '海口': [110.3893,19.8516],
        '淄博': [118.0371,36.6064],
        '淮安': [118.927,33.4039],
        '深圳': [114.5435,22.5439],
        '清远': [112.9175,24.3292],
        '温州': [120.498,27.8119],
        '渭南': [109.7864,35.0299],
        '湖州': [119.8608,30.7782],
        '湘潭': [112.5439,27.7075],
        '滨州': [117.8174,37.4963],
        '潍坊': [119.0918,36.524],
        '烟台': [120.7397,37.5128],
        '玉溪': [101.9312,23.8898],
        '珠海': [113.7305,22.1155],
        '盐城': [120.2234,33.5577],
        '盘锦': [121.9482,41.0449],
        '石家庄': [114.4995,38.1006],
        '福州': [119.4543,25.9222],
        '秦皇岛': [119.2126,40.0232],
        '绍兴': [120.564,29.7565],
        '聊城': [115.9167,36.4032],
        '肇庆': [112.1265,23.5822],
        '舟山': [122.2559,30.2234],
        '苏州': [120.6519,31.3989],
        '莱芜': [117.6526,36.2714],
        '菏泽': [115.6201,35.2057],
        '营口': [122.4316,40.4297],
        '葫芦岛': [120.1575,40.578],
        '衡水': [115.8838,37.7161],
        '衢州': [118.6853,28.8666],
        '西宁': [101.4038,36.8207],
        '西安': [109.1162,34.2004],
        '贵阳': [106.6992,26.7682],
        '连云港': [119.1248,34.552],
        '邢台': [114.8071,37.2821],
        '邯郸': [114.4775,36.535],
        '郑州': [113.4668,34.6234],
        '鄂尔多斯': [108.9734,39.2487],
        '重庆': [107.7539,30.1904],
        '金华': [120.0037,29.1028],
        '铜川': [109.0393,35.1947],
        '银川': [106.3586,38.1775],
        '镇江': [119.4763,31.9702],
        '长春': [125.8154,44.2584],
        '长沙': [113.0823,28.2568],
        '长治': [112.8625,36.4746],
        '阳泉': [113.4778,38.0951],
        '青岛': [120.4651,36.3373],
        '韶关': [113.7964,24.7028],
        '韶关': [103.8095,1.4462],
     };
var planePath = 'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z';
$.ajax({
    type: 'GET',
    dataType: 'json',
    url:'data/map.txt',
    async: true,
    cache: false,
    success:function(data){
        // console.log(data)
        var contents = data.contents,
            tempAman = [];//进港

        for( var i = 0,content; content = contents[i++]; ){
            var arr = [];
            for( var key in content ){
                var obj_1 = {},obj_2 = {};
                //起飞机场
                if(key == "Plan_ADEP"){
                    obj_1[key] = content[key];
                    arr.push(obj_1);
                        // console.log(arr)
                }
                //落地机场
                if(key == "Plan_ADES"){
                    obj_2[key] = content[key];
                    arr.push(obj_2);
                }
            }
            tempAman.push(arr);
            // console.log(tempAman)//进港存的数据格式
        }

var res=[]

        for(var j=0;j<tempAman.length;j++){
           var dataItem = tempAman[j];
           // console.log(dataItem)
           var fromCoord = geoCoordMap[dataItem[0].Plan_ADEP];
           // console.log(fromCoord)
           var toCoord = geoCoordMap[dataItem[1].Plan_ADES];
           // console.log(toCoord)
           if (fromCoord && toCoord)
           {
              res.push({
                 fromName: dataItem[0].Plan_ADEP,
                 toName: dataItem[1].Plan_ADES,
                 coords: [fromCoord, toCoord]
              });
              console.log(res)
           }
        }
        return res;
        var color = ['#a6c84c', '#ffa022', '#46bee9'];
        var series = [];
        [['进港', tempAman]].forEach(function (item, i) {
            series.push({
                name: item[0] ,
                type: 'lines',
                coordinateSystem: 'bmap',
                zlevel: 2,
                effect:{
                    show: true,
                    period: 6,
                    trailLength: 0,
                    symbol: planePath,
                    symbolSize: 15
                },
                lineStyle:{
                    normal:{
                        color: color[i],
                        width: 1,
                        opacity: 0.4,
                        curveness: 0.2
                    }
                },
                data: item[1]
            },
            {
                name: item[0],
                type: 'effectScatter',
                coordinateSystem: 'bmap',
                zlevel: 2,
                rippleEffect: {
                  brushType: 'stroke'
                },
                label: {
                    normal: {
                        show: true,
                        position: 'right',
                        formatter: '{b}'
                    }
                },
                // symbolSize: function (val) {
                //     return val[2] / 4;
                // },
                showEffectOn: 'render',
                itemStyle: {
                    normal: {
                        color: color[i]
                    }
                },
                data:item[1].map(function(dataItem){
                    // console.log(dataItem)
                    return {
                        name: dataItem[1].Plan_ADES,
                        value: geoCoordMap[dataItem[1].Plan_ADES]
                    };
                })
            })
            console.log(series)
        });
         option = {
        bmap:bmap,
        color: ['gold','aqua','lime'],
        backgroundColor: '#404a59',
        title : {
           text: '数据迁徙',
           left: 'center',
           textStyle : {
              color: '#fff'
           }
        },
        tooltip : {

        },
        legend: {
           orient: 'vertical',
           top: 'bottom',
           left: 'right',
           data:['进港', '离港'],
           textStyle: {
              color: '#fff'
           },
           selectedMode: 'single'
        },
        geo: {
           map: 'word',
           polyline: true,
           progressiveThreshold: 500,
           progressive: 200,
           label: {
              emphasis: {
                 show: false
              }
           },
           roam: true,
           itemStyle: {
              normal: {
                 areaColor: '#323c48',
                 borderColor: '#404a59'
              },
              emphasis: {
                 areaColor: '#2a333d'
              }
           }
        },
        series: series
     };
     myChart.setOption(option);
    }
})

Answer 1

You can try adding the speed parameter in the effect configuration, in the form

effect.constantSpeed ​​= 200

Also try setting the coordinateSystem parameter to geo.

(Personally I am not familiar with this case, but I happened to use ECharts to achieve the same effect, refer to here
http://oms.openspeech.cn/annu...)

An example configuration:

option = {
      backgroundColor: 'transparent',
      title: {
        text: '',
        left: 'center',
        textStyle: {
          color: '#fff'
        }
      },
      legend: {
        show: false,
        orient: 'vertical',
        top: 'bottom',
        left: 'right',
        data: ['地点', '线路'],
        textStyle: {
          color: '#fff'
        }
      },
      geo: {
        map: 'china',
        label: {
          emphasis: {
            show: false
          }
        },
        roam: true,
        itemStyle: {
          normal: {
            areaColor: '#1f2c43',
            borderColor: '#29416b',
            // TODO
            borderWidth: 1 * factor
          },
          emphasis: {
            areaColor: '#2b5272'
          }
        }
      },
      series: [{
        name: '地点',
        type: 'effectScatter',
        coordinateSystem: 'geo',
        zlevel: 2,
        rippleEffect: {
          brushType: 'stroke'
        },
        label: {
          emphasis: {
            show: true,
            position: 'right',
            formatter: '{b}'
          }
        },
        symbolSize: 2 * factor,
        showEffectOn: 'render',
        itemStyle: {
          normal: {
            color: '#46bee9'
          }
        },
        data: allData.citys
      }, {
        name: '线路',
        type: 'lines',
        coordinateSystem: 'geo',
        zlevel: 2,
        large: true,
        effect: {
          show: true,
          constantSpeed: 200,
          symbol: 'pin',
          symbolSize: 3 * factor,
          trailLength: 0
        },
        lineStyle: {
          normal: {
            color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [{
              offset: 0, color: '#49bcf8'
            }, {
              offset: 1, color: '#ff5686'
            }], false),
            width: 1 * factor,
            opacity: 0.3,
            curveness: 0.1
          }
        },
        data: allData.moveLines
      }]
}
// 格式示例
allData.citys = [{"name":"清远市","value":[112.9175,24.3292],"symbolSize":2,"itemStyle":{"normal":{"color":"#49bcf8"}}},{"name":"韶关市","value":[113.7964,24.7028],"symbolSize":2,"itemStyle":{"normal":{"color":"#49bcf8"}}}]
allData.moveLines = [{"fromName":"清远市","toName":"合肥市","coords":[[112.9175,24.3292],[117.29,32.0581]]},{"fromName":"清远市","toName":"北京市","coords":[[112.9175,24.3292],[116.418,39.9367]]}],
