java - 为什么长方形没有显示在GUI里？

Question

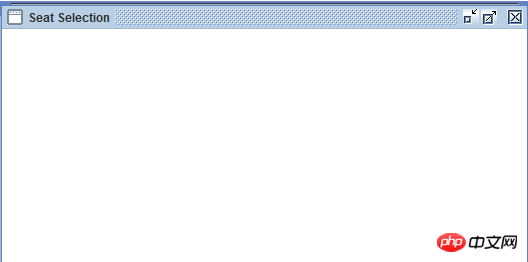

求大神帮个忙，为什么长方形没有显示在GUI里？哪里出错了？

public class SelectSeat {

    static JFrame frame;

    public JPanel createContentPane() throws IOException
    {

        JPanel totalGUI = new JPanel();
        RectDraw rect= new RectDraw();
        rect.setPreferredSize(new Dimension(30,25));
        totalGUI.setLayout(null);
        totalGUI.setBackground(Color.WHITE);
        totalGUI.add(rect);

        return totalGUI;
    }

        void setVisible(boolean b) {
        // TODO Auto-generated method stub

    }

    static void createAndShowGUI() throws IOException
    {

        JFrame.setDefaultLookAndFeelDecorated(true);
        frame = new JFrame("Seat Selection");
        //Create and set up the content pane.
        SelectSeat demo = new SelectSeat();
        frame.setContentPane(demo.createContentPane());
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setSize(535, 520);
        frame.setLocation(500,220);
        frame.setVisible(true);
    }

    private static class RectDraw extends JPanel
    {
        protected void paintComponent(Graphics g) {
            super.paintComponent(g);
             g.drawRect(29,550,300,250);
             g.setColor(Color.GRAY);
             g.fillRect(20,5,330,25);
             g.setColor(Color.BLUE);
             g.drawString("Movie Sceen", 150, 20);
            }


    }

}

Answer 1

The reason is the problem caused by totalGUI.setLayout(null);, I also thought it was strange at first

Later I referred to this question http://stackoverflow.com/questions/12308764/java-setlayoutnull

Solution, one is not to use setLayout(null);, use layout manager instead

Or use one of the ideas answered in the above question to add a bound to the object you want to display to prevent the display range from being invisible to the naked eye

    public JPanel createContentPane() throws IOException {

        JPanel totalGUI = new JPanel();
        RectDraw rect = new RectDraw();
        rect.setPreferredSize(new Dimension(30, 25));
        totalGUI.setLayout(null);
        totalGUI.setBackground(Color.WHITE);
        totalGUI.add(rect);
        Dimension d = rect.getPreferredSize();
        rect.setBounds(10, 20, d.width, d.height);
        return totalGUI;
    }
