Zkapps（零知识应用）是由零知识证明支持的 mina 协议智能合约，特别是 zk-Snarks [零知识简洁非交互式知识论证]。zkapps 取代了 snapps [智能非交互式知识论证]应用]。 ZkApp 智能合约是使用 o1js（一个 TypeScript 库）编写的。 zkApps 在用户的 Web 浏览器中运行客户端，并仅发布一个小的有效性证明，然后由 Mina 节点进行验证。 Zkapp 由智能合约和 UI 组成，我将在下一节中进一步描述。
我创建了关于年龄验证的 zkapp，其中用户年龄在不干预个人数据的情况下得到验证。
我继续安装 zkapp-cli npm 包，它实际上创建了用于继续使用证明器函数和验证器函数的模板，作为 zk 证明构建过程的一部分
下面是添加验证自定义逻辑的实现。它定义了 zk-SNARK 的电路逻辑，在证明生成过程中使用。实际的证明者函数由 o1js 库管理，并在使用私有输入在链外执行 zkApp 方法时调用。
import { Field, SmartContract, state, State, method } from 'o1js';
/**
* Private Age Verification Contract
* The contract will verify if the user's age is greater than or equal to the threshold age.
* The contract uses zero-knowledge proofs to keep the user's age private.
*/
export class AgeVerification extends SmartContract {
// State variable to store the verification result (valid or invalid)
@state(Field) valid = State<Field>();
// Method to initialize the state
init() {
super.init();
this.valid.set(Field(0)); // Default is invalid
}
// Method to verify the age
@method async verifyAge(age: Field, threshold: Field) {
// Compute age - threshold
const difference = age.sub(threshold);
// Use circuit-compatible logic to check if the difference is non-negative
const isValid = difference.equals(Field(0)).or(difference.greaterThanOrEqual(Field(0)))
? Field(1)
: Field(0);
// Set the validity of the verification result
this.valid.set(isValid);
}
}
以下脚本是与 AgeVerification zkApp 交互的测试套件。它在 txn.prove() 期间调用证明者逻辑，并通过检查其更新状态来验证 zkApp 的行为。
实际的证明者功能位于底层的 zkApp 方法（verifyAge）中，txn.prove() 是在测试过程中生成证明的机制。
为了测试输入，我编辑了测试脚本，如下所示。
import { AccountUpdate, Field, Mina, PrivateKey, PublicKey } from 'o1js';
import { AgeVerification } from './AgeVerification'; // Import the correct contract
let proofsEnabled = false;
describe('AgeVerification', () => {
let deployerAccount: Mina.TestPublicKey,
deployerKey: PrivateKey,
senderAccount: Mina.TestPublicKey,
senderKey: PrivateKey,
zkAppAddress: PublicKey,
zkAppPrivateKey: PrivateKey,
zkApp: AgeVerification; // Update to use AgeVerification instead of Add
beforeAll(async () => {
if (proofsEnabled) await AgeVerification.compile(); // Update compile for AgeVerification
});
beforeEach(async () => {
const Local = await Mina.LocalBlockchain({ proofsEnabled });
Mina.setActiveInstance(Local);
[deployerAccount, senderAccount] = Local.testAccounts;
let feePayer = Local.testAccounts[0].key;
deployerKey = deployerAccount.key;
senderKey = senderAccount.key;
zkAppPrivateKey = PrivateKey.random();
zkAppAddress = zkAppPrivateKey.toPublicKey();
zkApp = new AgeVerification(zkAppAddress); // Instantiate AgeVerification contract
});
async function localDeploy() {
const txn = await Mina.transaction(deployerAccount, async () => {
AccountUpdate.fundNewAccount(deployerAccount);
await zkApp.deploy();
});
await txn.prove();
// this tx needs .sign(), because `deploy()` adds an account update that requires signature authorization
await txn.sign([deployerKey, zkAppPrivateKey]).send();
}
it('generates and deploys the `AgeVerification` smart contract', async () => {
await localDeploy();
const valid = zkApp.valid.get(); // Access the 'valid' state variable
expect(valid).toEqual(Field(0)); // Initially, the contract should set 'valid' to Field(0)
});
it('correctly verifies the age in the `AgeVerification` smart contract', async () => {
await localDeploy();
const age = Field(25); // Example age value
const threshold = Field(18); // Example threshold value
// Call the verifyAge method
const txn = await Mina.transaction(senderAccount, async () => {
await zkApp.verifyAge(age, threshold); // Use the verifyAge method
});
await txn.prove();
await txn.sign([senderKey]).send();
const valid = zkApp.valid.get(); // Check the validity state after verification
expect(valid).toEqual(Field(1)); // Expected to be valid if age >= threshold
});
});
以下是测试结果
我在interact.ts文件中添加了证明者机制，它基本上生成一个zk-SNARK证明，并在mina区块链中进行交易时提交证明。当 interact.ts 脚本生成证明时，验证是在处理交易时由 Mina 区块链执行的。这是 zk-SNARK 系统的一个关键方面，证明者生成验证者（Mina 网络）检查的证明。
import fs from 'fs/promises';
import { Mina, NetworkId, PrivateKey, Field } from 'o1js';
import { AgeVerification } from './AgeVerification';
// check command line arg
let deployAlias = process.argv[2];
if (!deployAlias)
throw Error(`Missing <deployAlias> argument.
Usage:
node build/src/interact.js <deployAlias>
`);
Error.stackTraceLimit = 1000;
const DEFAULT_NETWORK_ID = 'testnet';
// parse config and private key from file
type Config = {
deployAliases: Record<
string,
{
networkId?: string;
url: string;
keyPath: string;
fee: string;
feepayerKeyPath: string;
feepayerAlias: string;
}
>;
};
let configJson: Config = JSON.parse(await fs.readFile('config.json', 'utf8'));
let config = configJson.deployAliases[deployAlias];
let feepayerKeysBase58: { privateKey: string; publicKey: string } = JSON.parse(
await fs.readFile(config.feepayerKeyPath, 'utf8')
);
let zkAppKeysBase58: { privateKey: string; publicKey: string } = JSON.parse(
await fs.readFile(config.keyPath, 'utf8')
);
let feepayerKey = PrivateKey.fromBase58(feepayerKeysBase58.privateKey);
let zkAppKey = PrivateKey.fromBase58(zkAppKeysBase58.privateKey);
// set up Mina instance and contract we interact with
const Network = Mina.Network({
// We need to default to the testnet networkId if none is specified for this deploy alias in config.json
// This is to ensure the backward compatibility.
networkId: (config.networkId ?? DEFAULT_NETWORK_ID) as NetworkId,
mina: config.url,
});
const fee = Number(config.fee) * 1e9; // in nanomina (1 billion = 1.0 mina)
Mina.setActiveInstance(Network);
let feepayerAddress = feepayerKey.toPublicKey();
let zkAppAddress = zkAppKey.toPublicKey();
let zkApp = new AgeVerification(zkAppAddress);
let age = Field(25); // Example age
let threshold = Field(18); // Example threshold age
// compile the contract to create prover keys
console.log('compile the contract...');
await AgeVerification.compile();
try {
// call verifyAge() and send transaction
console.log('build transaction and create proof...');
let tx = await Mina.transaction(
{ sender: feepayerAddress, fee },
async () => {
await zkApp.verifyAge(age, threshold); // Replacing update() with verifyAge
}
);
await tx.prove();
console.log('send transaction...');
const sentTx = await tx.sign([feepayerKey]).send();
if (sentTx.status === 'pending') {
console.log(
'\nSuccess! Age verification transaction sent.\n' +
'\nYour smart contract state will be updated' +
`\nas soon as the transaction is included in a block:` +
`\n${getTxnUrl(config.url, sentTx.hash)}`
);
}
} catch (err) {
console.log(err);
}
function getTxnUrl(graphQlUrl: string, txnHash: string | undefined) {
const hostName = new URL(graphQlUrl).hostname;
const txnBroadcastServiceName = hostName
.split('.')
.filter((item) => item === 'minascan')?.[0];
const networkName = graphQlUrl
.split('/')
.filter((item) => item === 'mainnet' || item === 'devnet')?.[0];
if (txnBroadcastServiceName && networkName) {
return `https://minascan.io/${networkName}/tx/${txnHash}?type=zk-tx`;
}
return `Transaction hash: ${txnHash}`;
}
我使用的年龄和阈值输入为 25 和 18。
由于测试已通过运行 npm run test 成功完成。我继续使用 zk config 在 devnet 上进行部署
我提供了以下输入：
部署别名：test
网络类型：测试网
网址：https://api.minascan.io/node/devnet/v1/graphql
付费者：新的付费者密钥
交易：0.1
可以从这里检索 URL：

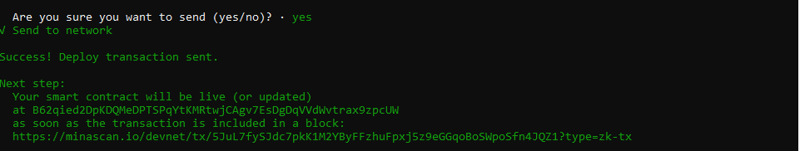

然后在部署后我得到了以下响应。
合约部署在以下devnet

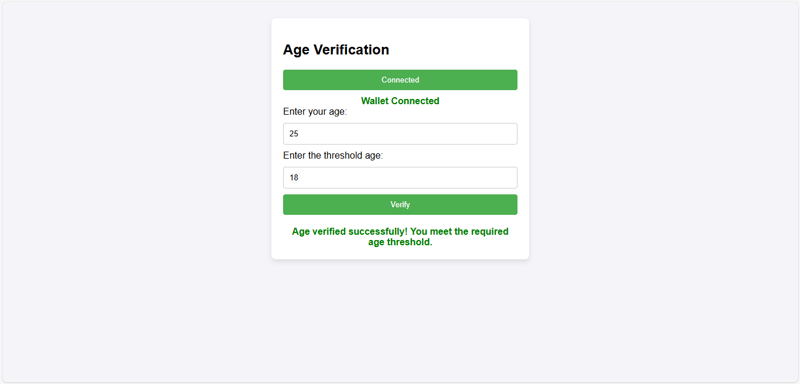

部署后，我继续使用 UI，通过提供 RPC URL 和部署的合约地址，选择简单的 html、css 和 js，这是最终的 UI。
将智能合约与UI集成后zkapp的创建就完成了。在为 AgeVerification zkApp 构建用户界面 (UI) 后，前端与智能合约的集成允许用户与零知识证明系统无缝交互。 UI 有助于向合约提交用户年龄和阈值数据，同时通过 zk-SNARK 维护隐私。这使得用户能够在不透露实际值的情况下验证自己的年龄，从而保持机密性。后端利用证明者功能生成证明，Mina 区块链对其进行有效验证。这种端到端解决方案可确保安全、用户友好的体验，同时充分利用 Mina 基于 zk-SNARK 的架构提供的隐私和可扩展性功能。
